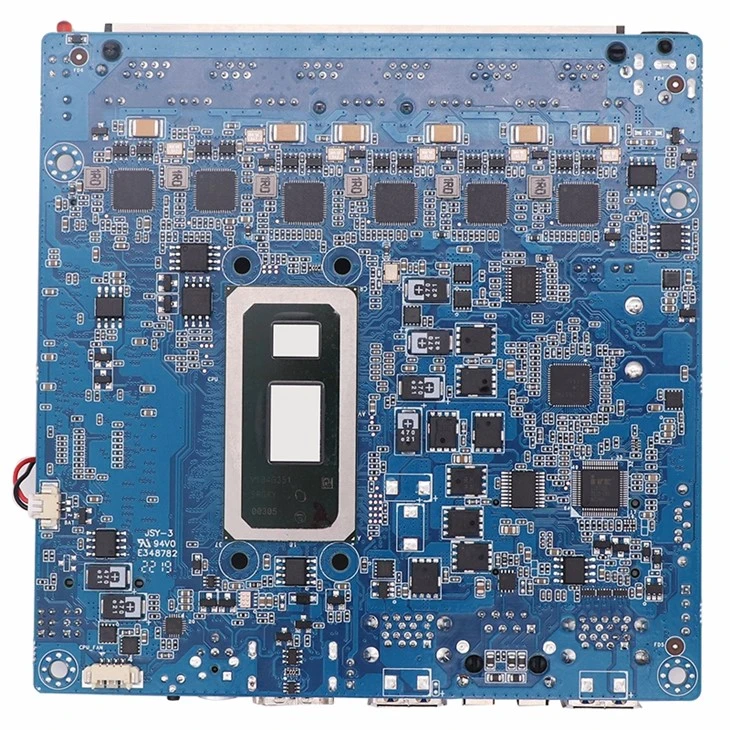

Mini desktop box motherboard advantages
Mini desktop box 1528NP-12 supports pentium,celeron (i3i5i7) intel FCBGA1528Coffee Lake,Wishkey lake,Comet lake U series processors.
Our mini desktop box can stably combine low power consumption and high performance, it supports DC 12V single power input, Supports up to DDR4 2133 64GB SO DIMM memory, supports HDMI standard display. This mini desktop box has rich scalability, with Intel low-power platform, along with high-speed storage SATA and mini SATA, provides serial port, USB, mini PCIE. Especially, this mini destop box motherboard supports 6 2.5G Intel I226/I225 network cards, suitable for home, corporate, office, medical, industrial, small business, education, and other networking, routing, gateway.
Product specification
| System | |||||
|
CPU |
Intel➅ Core™ i5-10210U Processor ,FC-BGA1528,Four nuclear eight threads, 1.60GHz primary frequency,Max Turbo Frequency 4.20GHz, 6MBSmartCache, TDP15W |
||||
|
Memory |
2 x DDR4 260PIN SO-DIMM Slot(Slotmemory support voltage 1.2V) |
||||
|
DDR4-2666 |
|||||
|
Biggest support 64GB memory |
|||||
|
Storage capabilities |
1× SATA |
||||
|
1× M-SATA SSD |
|||||
|
expansion interface |
1×MINI PCI-E |
||||
|
Ethernet |
Intel➅I225 Ethernet Controller(optional I226) |
||||
|
Backplane I / O |
1×PWR_ON |
2×Double layer USB3.0 |
1× HDMI |
||
|
1×RESET_BTN |
6× LAN |
1×COM(RJ45) |
|||
|
1×DC_IN |
1×LED |
||||
|
On-board I / O |
1×SATA_PWR |
1×7pin SATA |
1×CPU_FAN |
||
|
Mechanical & Environmental |
|||||
|
Power Input |
DC_IN 12V |
Dimension |
120mm x 120mm |
||
|
Working temperature |
-20~55 ℃ |
Ambient temperature |
5~90℃ relative humidity, no condensation |
||
