Your Leading OPS PC Module Supplier
Huizhou Xinzhilan Technology Co., Ltd. was founded in 2013,which is a high-tech enterprise that focuses on the research and development, production, sales, and service of industrial control motherboards on ARM and X86 platforms, It is also a leading provider of IoT solutions in the industry. The product has been widely used in educational conferences, Multiple fields such as warehousing and logistics, smart healthcare, smart transportation, network security, digital business display, Internet of Vehicles, financial terminals, commercial POS machines, etc.
-
![989-OPS]()
-
![1023-OPS]()
-

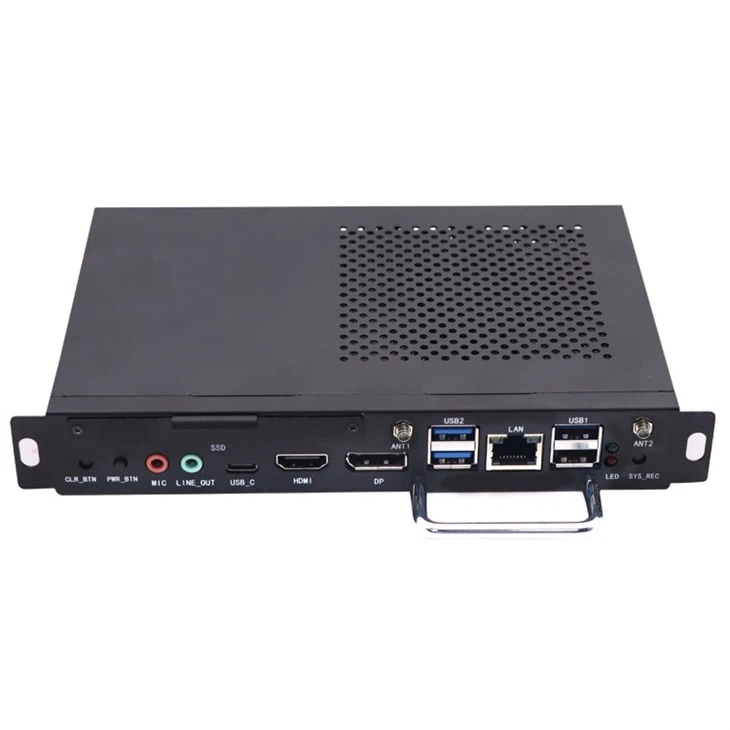

![1036-IOPS]()
-
![1744-IOPS]()
-

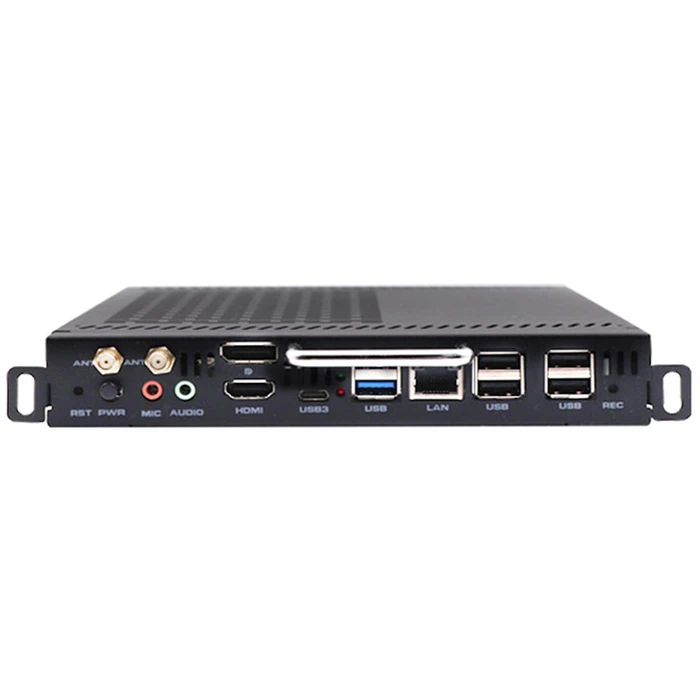

![OPS Windows 10 (1744MXM)]()
OPS Windows 10 (1744MXM)Engineered for the future of digital learning, our industrial-grade OPS module harnesses the intelligence of an Intel® Core™ i5-1235U processor (10 cores/12 threads, up to 4.4GHz Turbo) to handleread more -
![Intel OPS Pc]()
Intel OPS Pc◇1449 intel ops pc module I3I5I7 11th generation. ◇Support :Intel® Core™ i3i5i7-1165G7 Processor (optional) ，FCBGA1449 CPU. ◇Onboard Realtek RTL8111 Gigabit network card chip. ◇2 x DDR4 260PINread more -
![OPS I5]()
Why Choose Us
Production Capacity
Huizhou Xinzhilan Technology Co., Ltd. was established in 2018. The company operates a manufacturing facility that spans over 6,000 square meters and has an annual production capacity of up to one million computer motherboards.
Quality Assurance
The factory maintains a dedicated quality inspection department and makes substantial investments in product testing. Each product undergoes rigorous reliability testing to ensure safe and dependable performance in a variety of complex environments.
Advanced Equipment
The manufacturing base comprises well-equipped structural and electronic production workshops. It is fully equipped with SMT, DIP, and complete machine assembly lines, along with advanced testing and analytical equipment.
Specifications of OPS PC Module
|
CPU |
Intel➅ Core™ i5-1035G1 Processor , FCBGA1526,Four nuclear eight threads, 1.00GHz primary frequency, The biggest farce frequency 3.60 GHz, 6MBSmartCache cache, TDP 15W |
||
|
Intel 10 generation Core /Pentium/Celeron CPU(FCBGA1526) |
|||
|
Memory |
2x DDR4 260PIN SO-DIMM Slot(memory support voltage 1.2V) |
||
|
Memory type DDR4-3200 MHz |
|||
|
Biggest support 64GB memory |
|||
|
Storage capabilities |
1× SATA 22PIN |
||
|
1×M.2(2280)SSD |
|||
|
Expansion interface |
1×M.2(2230) |
||
|
Ethernet |
On-board REALTEK RTL8111 network card chip |
||
|
Audio |
On-board Realtek support 5.1 channels support HD Audio Support audio input and output |
||
|
Backplane I / O |
1×DC_IN |
1× Type_C |
1×CLR_CMOS BTN |
|
1× DP |
2×Double layer USB3.0 |
1×SYS_REC BTN |
|
|
1×HDMI |
1× LAN |
1× MIC(Input) |
|
|
1×PWR_BTN |
1×LED |
1×LINE_OUT(output) |
|
|
On-board I / O |
1×JUSB2.0 (4pin) |
1×SYS_FAN |
1× SATA 22PIN |
|
1×F_PANEL |
1×CPU_FAN |
1×OPSC Slot |
|
Product Video
Functions of OPS PC Module
Standardized Interface: OPS establishes a standard interface, connectors, and mounting mechanism for adding Windows to interactive touchscreens. This allows for compatibility and interchangeability between different displays and players that adhere to the OPS specification.
Simplified Installation and Maintenance: With OPS, installations become more streamlined. OPS modules can be easily inserted or removed from compatible displays without the need for additional cables or complex setup. This simplifies installation and maintenance.
Scalability and Upgradability: OPS allows for scalability and upgradability of interactive touchscreens. Display manufacturers, like CommBox can produce displays with OPS slots, and users can choose and replace OPS modules based on their computing needs or upgrade requirements. This flexibility helps extend the lifespan and adaptability of the digital signage infrastructure.
Enhanced Aesthetics: OPS modules are designed to be discreet and integrated into the display, minimizing external cables and devices. This results in a cleaner and more professional-looking installation, with the focus on the display itself rather than visible computing equipment.
Wide Compatibility: OPS modules support various operating systems and software applications, making them compatible with a wide range of digital signage software and content management systems. This compatibility allows users to choose the software and applications that best suit their specific needs.
Customization Options
| Material | Customizable |
| Shape | Customizable |
| Size | Customizable |
| Logo | Customizable |
| MOQ | Customizable |
Production Process
Installation Requirements of OPS Computer
1. Please power off the AVer IFP completely.
2. Remove the OPS slot cover by removing the 2 screws as shown below.
3. Slide in the OPS computer as shown in the picture.
4. The side with the fan should face outwards.
5. Now make sure the screws are tightened.
6. You can now turn on the IFP system power.
7. Switch to the OPS source and the OPS will automatically power on.
8. You would now need to activate the windows 10 OS pre-installed on the system.
9. Launch the Windows setup screen and navigate to the "Update & Security" section.
10. Click on "Activation" and select the option under "Update product key".
11. After Windows is activated, launch Internet Explorer and access it.
12. Click on "Update now" and run the "Windows10Upgrade.exe" application and follow the on screen instructions. Please be patient as the upgrade process may take up to an hour or more.
Certificate
Our High-Quality After-Sales Service
From the date of purchase, you will enjoy a 1-year product warranty. During the warranty period, if there are quality issues with the product, we will provide free repair or replacement services.
The warranty covers defects due to manufacturing or material issues but does not include problems caused by human damage or improper use.
To avail of the warranty service, please keep your proof of purchase and provide relevant information when needed.
Packing & Transportation
Packaging details: Protective film or foam protection; standard carton or wooden box.
