Product advantages

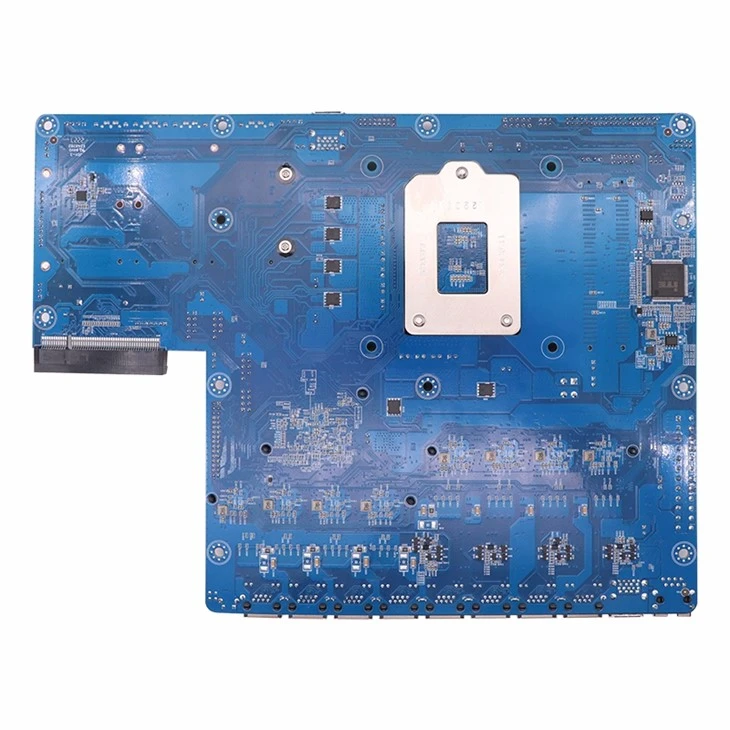

H170NP-21 4u rackmount computer supports intel Gen6, Gen7, Gen8, Gen9 series processors.
H170NP-21 4u rackmount computer uses intel C236 chipset, It supports ATX power supply, the maximum support DDR4 2400 SO DIMM memory, supports HDMI, VGA standard display. Furthermore it has rich scalability. H170NP-21 4u rackmount computer unpon Intel workstation platform, supports high-speed storage of 5 high-speed SATA and 1 mini SATA. It provides serial port, USB, mini PCIE,PCIE, audio, GPIO, TPM, PS2, etc. More importantly, this product supports Intel 8-way I226 I225 network cards, two of which can support bypass, suitable for home, company, office, medical, industrial, small business, education, and other networking, routing, gateway.
Product specification
| System | ||||
|
CPU |
LGA1151 6th/7th/8th/9th Intel➅celeron/Pentium Core™ i3/i5/i7 CPU |
|||
|
Memory |
2 x DDR4 SO 204-SODIMM Slot(memory support voltage 1.2V) |
|||
|
DDR4-1866/2133 |
||||
|
Biggest support 16GB memory |
||||
|
Storage capabilities |
5× SATA (4 × 7 pin SATA +1×22 pin SATA) |
|||
|
1×M-SATA SSD |
||||
|
1× 8X PCIe, Expandable optical port or electrical port |
||||
|
expansion interface |
2× Mini-PCIE |
|||
|
Ethernet |
8* Intel WGI226, Support Wake On LAN,PXE |
|||
|
Support two BYPASS |
||||
|
Backplane I / O |
1x RJ45_COM |
1× Double laye USB3.0 |
8×LAN |
|
|
Backplane I / O |
1× Double laye USB3.0 |
|||
|
On-board I / O |
1×24 pin ATX |
2×USB3.0 pin |
1×2*20 PIN COM (Can be external to 4 COM interfaces) |
|
|
1×4 pin ATX |
5×SATA |
1×COM(2*5 pin) |
||
|
1×PS2 keyboard & mouse |
1×F_PANEL 2*5 pin |
1×CPU_FAN |
||
|
6×USB2.0 pin (2*USB3.0) |
1×JHDMI |
2×SYS_FAN |
||
|
1×8bit GPIO |
1×LAN_LED1 |
1× SIM |
||
|
Mechanical & Environmental |
||||
|
Power Input |
ATX |
Dimension |
280.24mm x 209.85mm |
|
|
Working temperature |
0~50 ℃ |
Ambient temperature |
5~90℃ relative humidity, no condensation |
|
