Product advantages
Our product is a value-Performance Optimized J1800 J1900 thin itx motherboard ,that supports Bay Trail celeron FCBGA1170 Intel@Processor
The J1800 J1900 thin itx motherboard is based on the Bay Trail low power performance.Based on SOC system-on-chip, the highly integrated package integrates the chipset and the processor, and the 4 cores and 4 threads have great potential for core development. It can achieve high performance and meet the energy saving requirements of mobile systems.

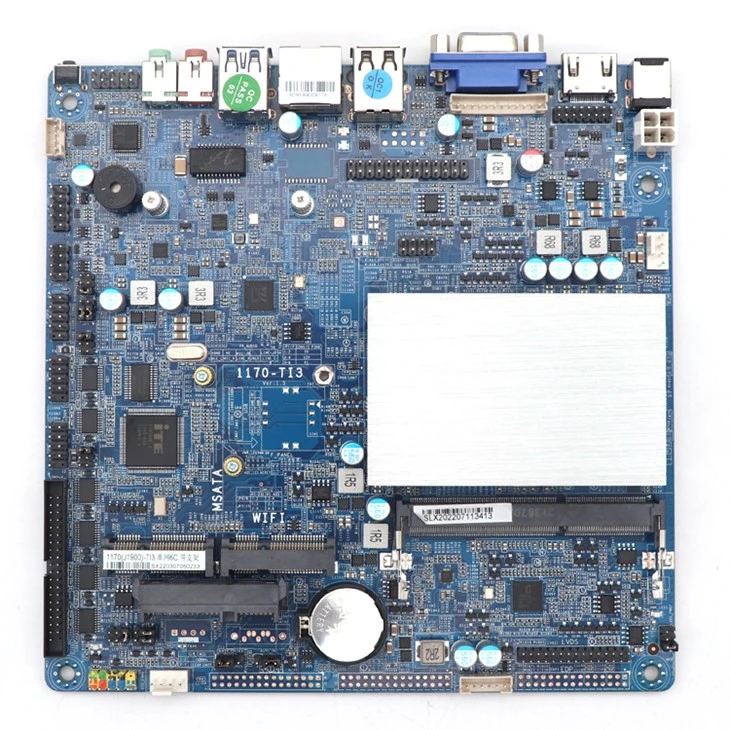

The J1800 J1900 thin itx motherboard 1170- TI3 runs on 12V/19V input DC power and is equipped with many game-changing technologies including SODIMM DDR3L(1.35V), USB 3.0, and standardized 1GbE Ethernet.
The 1170-TI3 J1800 J1900 thin itx motherboard Support a variety of display modes, support LVDS/EDP display, with excellent display performance, can be used for all-in-one machines, cash registers and other industry appliances .
Product Parameters
|
Product Specification |
||||||
|
CPU |
Intel➅ Celeron➅ Processor J1900 FCBGA1170,Four nuclear Four threads,2.00 GHz primary frequency,2 MB L2 Smart Cache,TDP 10W |
|||||
|
Memory |
1 x DDR3 204PIN SO-DIMM Slot(memory support voltage 1.35V) |
|||||
|
DDR3L 1333 |
||||||
|
Support 8GB memory maximum |
||||||
|
Storage capabilities |
1× SATA (22PIN) |
|||||
|
1× M-SATA SSD |
||||||
|
expansion interface |
1×MINI PCI-E |
|||||
|
Ethernet |
On-board REALTEK RTL8111 network card chip |
|||||
|
Audio |
On-board Realtek ALC662 5.1 channels support HD Audio Support audio input and output |
|||||
|
Backplane I / O |
1× DC_IN |
1× LAN |
||||
|
1× HDMI |
1×Double layer USB3.0 |
1× Mic(Input) |
||||
|
1× VGA |
1×Double layer USB2.0 |
1× PHONE(output) |
||||
|
On-board I / O |
1×DC_ATX(4PIN) |
1×INVERT |
2×9pin COM |
|||
|
1×JHDMI |
2×USB2.0 PIN(Can be an |
1×EDP(optional) |
||||
|
1×VGA_H |
1×USB3.0 PIN(Can be an external 2 USB3.0 |
1×8pin GPIO |
||||
|
1×LVDS |
1×2*20pinCOM(Can be an external four COM |
1×CPU_FAN |
||||
|
1×LVDS_PWR |
1×F_PANEL |
1×SYS_FAN |
||||
|
1×SPEAKER |
1×22pin SATA |
1×F_AUDIO |
||||
|
1× PRINT |
1×PS2 keyboard & mouse |
|||||
|
Mechanical & Environmental |
||||||
|
Power Input |
DC_IN 12V/19V |
Dimension |
170mm x 170mm |
|||
|
Working temperature |
-20~55 ℃ |
Ambient temperature |
5~90%RH relative humidity, no condensation |
|||
After-Sales Service
We are committed to providing high-quality after-sales service to ensure customer satisfaction:
1-Year Warranty:
- From the date of purchase, you will enjoy a 1-year product warranty. During the warranty period, if there are quality issues with the product, we will provide free repair or replacement services.
- The warranty covers defects due to manufacturing or material issues but does not include problems caused by human damage or improper use.
- To avail of the warranty service, please keep your proof of purchase and provide relevant information when needed.
